Iridium Rolled Sheet
Iridium Rolled Sheet Description
There are generally four methods to produce Iridium Sheet: melting and forging, powder metallurgy, physical vapor deposition and chemical vapor deposition. The first method is suitable for preparing larger sizes and thicknesses; the second method can prepare high-performance foils, and can accurately control the composition and performance; the third and fourth methods are very suitable for preparing high-precision, ultra-thin iridium foils for use in microelectronics, optics and other fields. They undergo multiple forging and rolling during the processing process to ensure that the product thickness meets customer requirements.
Features
- High melting point, can maintain a stable solid state in high temperature environment, not easy to melt and deform.
- Good electrical and thermal conductivity, low thermal expansion coefficient, good ductility.
- High density, high hardness, high strength, wear resistance, long service life.
- Strong corrosion resistance, can resist the erosion of most acids, alkalis, salt solutions and high-temperature molten metals.
Application
Iridium Rolled Sheet can be widely used in aerospace, electronic information, high temperature processing, chemical industry, medical equipment, optical devices, integrated circuits, and other fields. It not only effectively protects the key components inside the equipment from corrosion and wear, but also realizes efficient transmission of current, heat and catalytic activity, thus extending the service life of various industrial equipment.
- High-temperature parts of engines
- High temperature furnace linings in the metallurgical industry
- Reflective layer materials in nuclear reactors
- Precision parts manufacturing in electronic devices
- Commonly used in reactor linings and catalyst carriers in corrosive environments
- Can be used to manufacture electrodes, wires, heat sinks and other parts
Iridium Rolled Sheet Dimension
|
Grade |
Pure Ir |
|
Purity |
≧99.99% |
|
Thickness |
0.125x50x50mm |
|
Melting point |
2410°C |
|
Density |
22.56g/cm3 |
|
Shape |
Foil, Sheet |
|
Surface |
Polishing, Alkali Cleaning |
|
Standard |
ASTM, ASME ,GB |
|
Certification |
ISO 9001 |

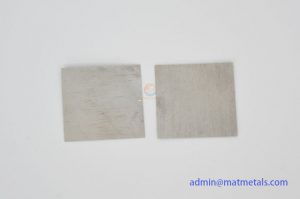

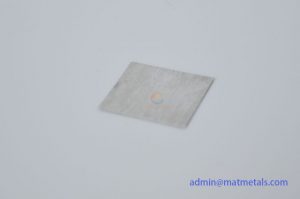

Iridium Rolled Sheet Pictures
