Pure Niobium Round Bar

Overview

Pure Niobium Round Bar is a rod-shaped material made of metallic niobium. With its unique physical and chemical properties, it is suitable for applications in many high-end fields, such as the chemical industry, medical treatment, electronics, semiconductor, energy, and superconductivity industries.

Advantages

  • It has a high melting point, second only to tungsten, a low Coefficient of thermal expansion, and good strength and oxidation resistance at high temperatures.
  • Chemical stability, at room temperature in water, acid, alkali, and most salt solutions, has strong corrosion resistance.
  • Good mechanical and processing properties, high strength, good toughness, can be forged, rolled, stretched, cut, and other processes into different specifications.
  • The compatibility with human tissue is close to titanium, non-toxic, non-allergenic, and the antibody solution corrosion.
  • Unique superconducting characteristics, in the superconducting state, with very low resistance and a very strong ability to resist magnetic fields.

Application

  1. Aerospace: Used in the manufacture of rocket engine nozzles, combustion chamber components, as well as aircraft thermal protection structural components, to meet extreme temperature challenges.
  2. High-temperature industrial equipment, such as high-temperature furnace heating elements, ceramic sintering molds, and high-temperature deposition equipment in semiconductor manufacturing (CVD/PVD cavity components).
  3. Chemical and marine engineering: manufacture of corrosion-resistant reactors, heat exchangers, pipelines, and valves, particularly suitable for treating media containing chloride ions or strong oxidants; in offshore oil and gas exploitation, as a subsea pipeline connector, it is resistant to sulfide corrosion in seawater and oil and gas.
  4. Electronics and semiconductors: Used as substrates for high-frequency electronic components to improve signal transmission efficiency, and as sputtering targets in semiconductor manufacturing to prepare capacitor dielectric layers or superconducting films.
  5. Precision Instrument Manufacturing: Pure Niobium Round Bar is used for mass spectrometer ion source components and vacuum tube cathode support structure.
  6. Medical and scientific research: magnets for superconducting magnetic resonance imagin (MRI-RRB- devices, plates, screws, and artificial joints that bind to bone tissue, especially in patients with titanium allergies.

Dimension

Grade

R04200,R04210

Purity

≥99.7%,99.9%,99.95%

Diameter

2-100mm

Length

200-2000mm

Density

8.57g/cm3

Hardness

50-200HB

Delivery Time

10-20 days

Standard

ASTMB392, GB/T 4181

Certification

ISO9001

Process

① Extract high-purity niobium materials by powder metallurgy

② Cold isostatic pressing or hot isostatic pressing to form billets with a density of ≥90%.

③ Sintering in a vacuum furnace at 1200~1400℃ to increase the density to 95%~98%.

④ Improve mechanical properties through forging and repeated rolling.

⑤ For small diameters, drawing can be selected, and for large diameters, turning can be selected, and annealing treatment is performed.

⑥ Surface chemical polishing and pickling treatment to improve surface finish.

Pictures

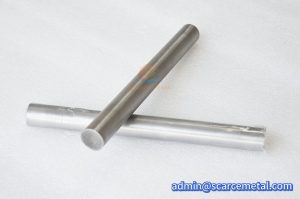

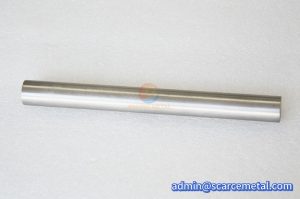

Niobium Bar Niobium Rod
